Controllers, push plates & washroom kits.
Every KwikMaster product is built to pair with the Relay Master v6.5 — ADA-compliant, UL-recognized, and Class 2 extra-low-voltage. Browse the line below, or request a quote.
Relay Master v6.5
A compact, field-programmable multi-mode relay controller for automatic door operators, access control, and barrier-free washrooms. Each relay is independent and push buttons are fully isolated from the door-operator output.
- 4 × UL-listed relays — 3A @ 30VDC (Relay 1 & 4 wet-output configurable)
- 5 inputs — 4 dry-contact + 1 wet input (12–24V DC)
- 433 MHz receiver — up to 5 learned codes, fully wireless option
- 2.8" colour TFT, rotary-encoder menu · non-volatile memory
- 3 operating modes — Standard · Washroom · Card Reader
WRX Illuminated Washroom Kit

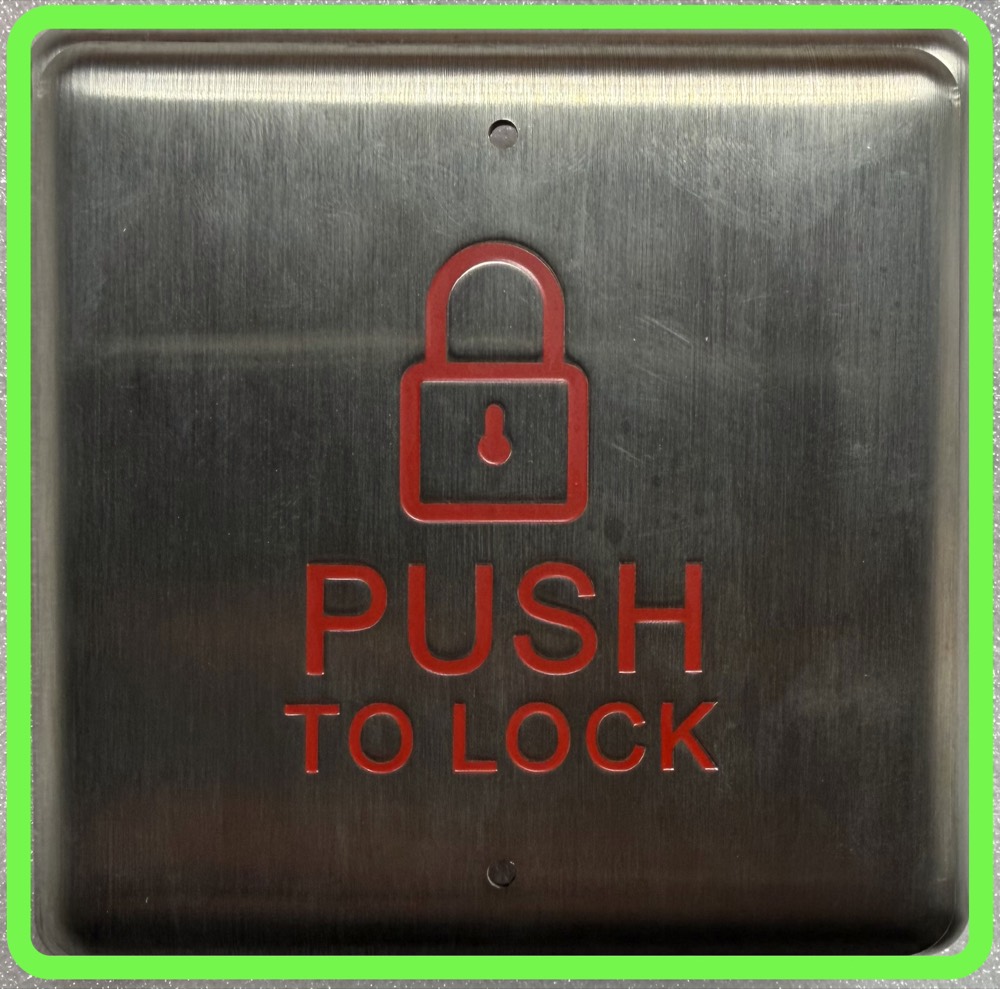

ADA-compliant stainless push plates with an illuminated LED ring for barrier-free washrooms. Outside Push-to-Open, inside Push-to-Lock — the ring shows green when unoccupied and red when occupied. Flush mounted, no surface backbox.
- 304 brushed stainless steel · 4" square ADA face
- LED ring — green = unoccupied, red = occupied
- Flush mount — no backbox required
- 6 colour-coded wires, wire per Relay Master diagram
WEX Emergency Washroom Kit
A complete emergency / nurse-call system for barrier-free washrooms. Pressing the call button triggers the relay and activates the inside and outside light/alarm; the magnetic door contact auto-resets the alarm when the door opens.

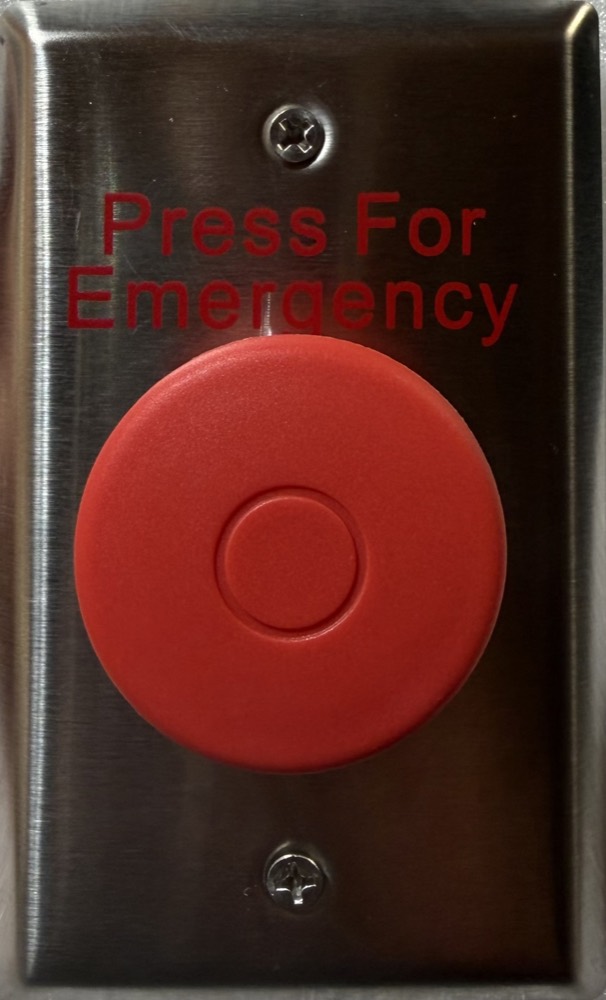

- Red momentary emergency call button

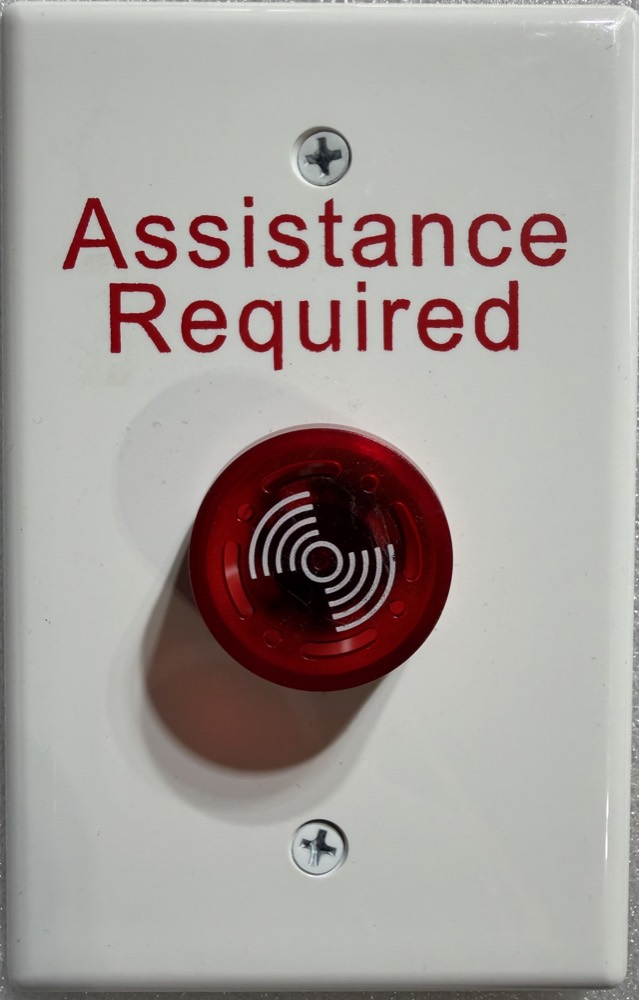

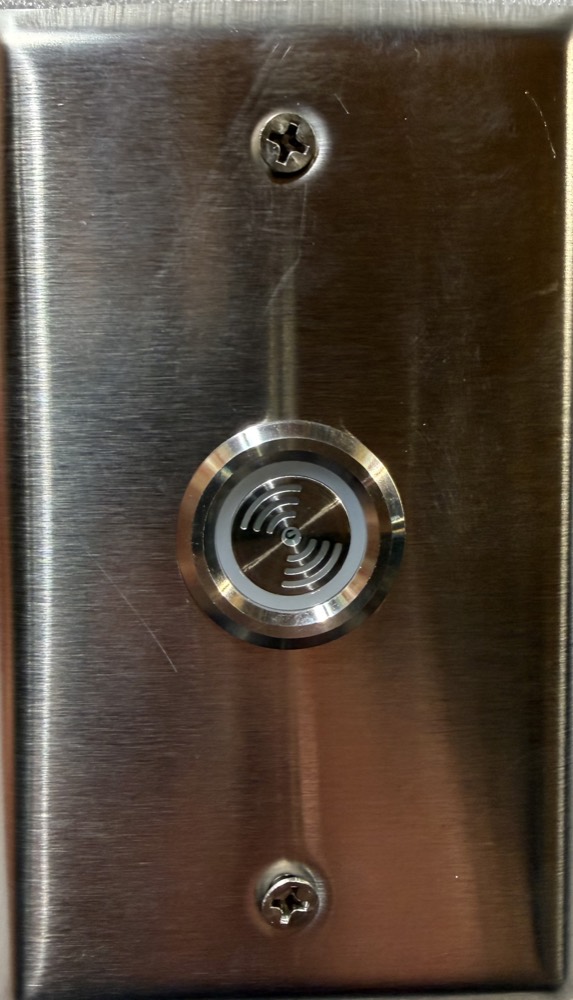

- Inside & outside visual + audible alarm — flashing red when active

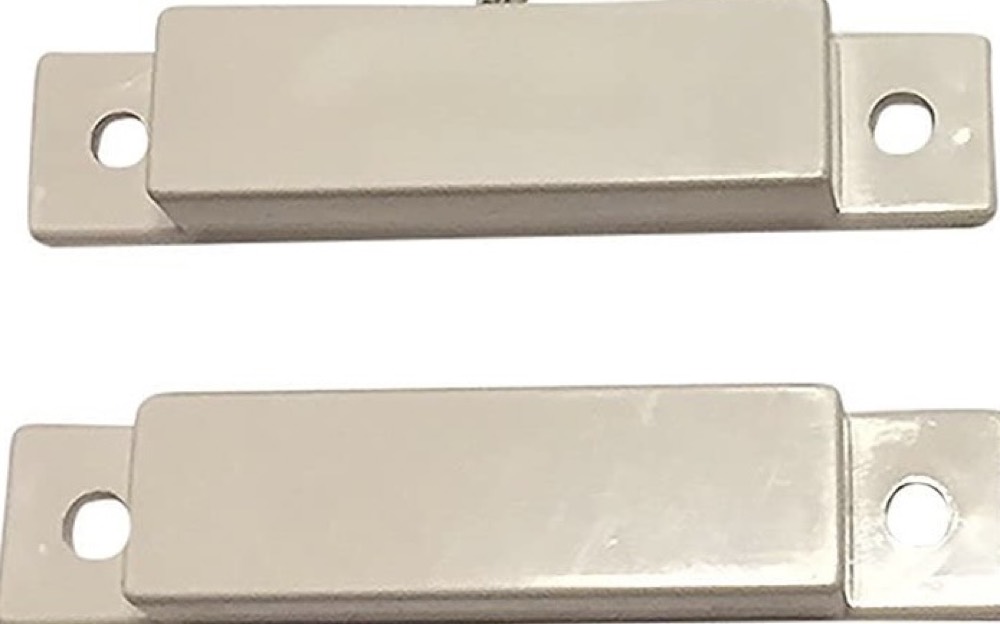

- Magnetic door contact, auto-resets on door open
- Flush mount · Class 2 Extra Low Voltage
PBX Push to Open

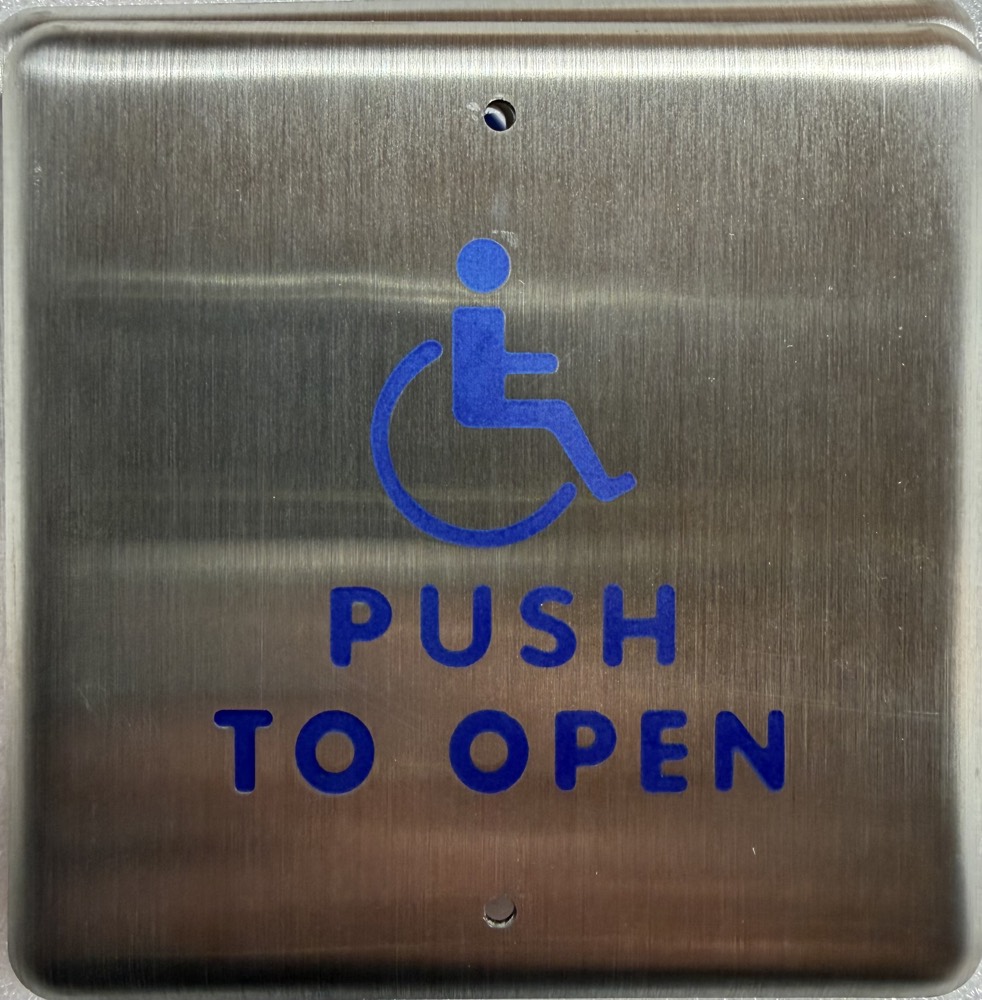

A heavy-duty, ADA-compliant all-active push plate — any point of contact activates the switch, minimising actuation force. Brushed 304 stainless that flush mounts to a standard single-gang box for a clean professional finish.
- 4½" × 4½" brushed 304 stainless · all-active face
- SPDT momentary microswitch — 15A @ 30V DC, UL/CSA approved
- Dry contact N.O. / N.C. · flush mount, single-gang box
- Available Push to Open (blue) / Push to Lock (red)
SFP Wave-to-Open
Hands-free touchless wave switches in brushed 304 stainless — hygienic activation for washrooms and high-traffic doors. Available as the SFP24 single-gang plate and the SFP44 4½" square plate.
- SFP24 — single-gang stainless keystone wall plate
- SFP44 — 4½" square stainless wall plate
- 304 stainless steel, blue silk-screen graphics
- Touchless — no physical contact required
Wireless Receivers & Transmitters
Replace any hard-wired input with a 433 MHz transmitter mounted right on the button — no control wiring needed. Dual-channel wide-voltage receivers pair multiple remotes and support momentary, latching, and toggle modes.
- 433 MHz ASK · receiver sensitivity −105 dBm
- Dual-channel, 12–36V DC, up to 10A per channel
- Momentary, latching, and toggle operating modes
- Pair multiple remotes to a single receiver
Back Boxes & Mounts
Surface back boxes and mounting hardware for installs where a flush opening into the wall isn't available. Matched to the KwikMaster push-plate range.
- Surface-mount back boxes for push plates
- For walls where flush mounting isn't possible
- Matched finishes to the KwikMaster plate range
Need pricing for a project?
Tell us your building type, door count, and the modes you need — we'll get back to you with a quote.
Request a Quote
